Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove nuts A and B shown in the figure.

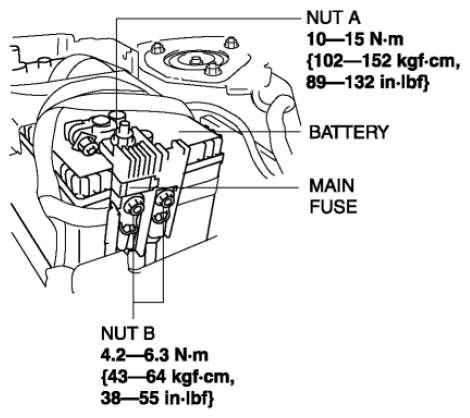

    Fig 1: Main Fuse And Nuts A And B With Torque Specifications
    G08153501
  3. Remove the main fuse.
  4. Install in the reverse order of removal.
