Horn Removal/Installation

  1. Disconnect the negative battery cable.
  2. Slightly bend back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

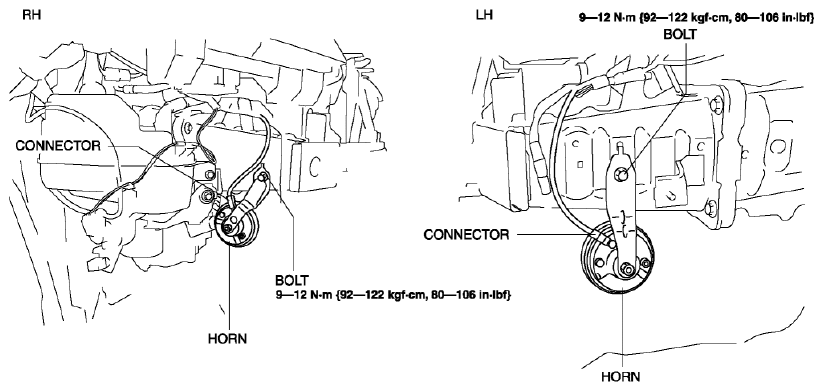

    Fig 1: Horn And Connector With Torque Specifications
    G08153568
  4. Remove the bolt.
  5. Remove the horn.
  6. Install in the reverse order of removal.
