Oil Pressure Switch Installation

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

CAUTION:

Be sure there is no sealant between 1.0-2.0 mm {0.040-0.078 in} from the end of the oil pressure switch to prevent a possible operation malfunction.

Apply silicone sealant to the threads of the oil pressure switch.

Fig 1: Applying Silicone Sealant To Threads Of Oil Pressure Switch
CAUTION:
- Install the oil pressure switch before the applied silicone sealant starts to harden.
Install the oil pressure switch.

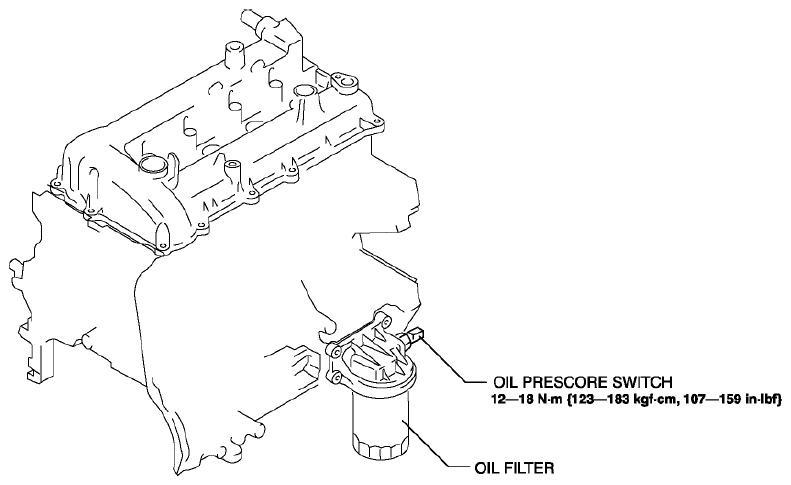

Fig 2: Oil Pressure Switch And Oil Filter With Torque Specifications
Connect the connector.

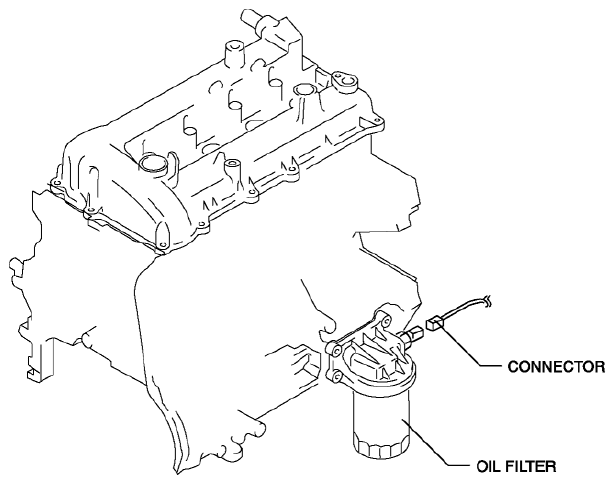

Fig 3: Oil Pressure Switch And Connector
Connect the negative battery cable.
Start the engine and verify that there is no oil leakage.
- If there is oil leakage, repair or replace the oil seal.
Install the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
