Oil Pressure Switch Removal

WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove aerodynamic undercover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

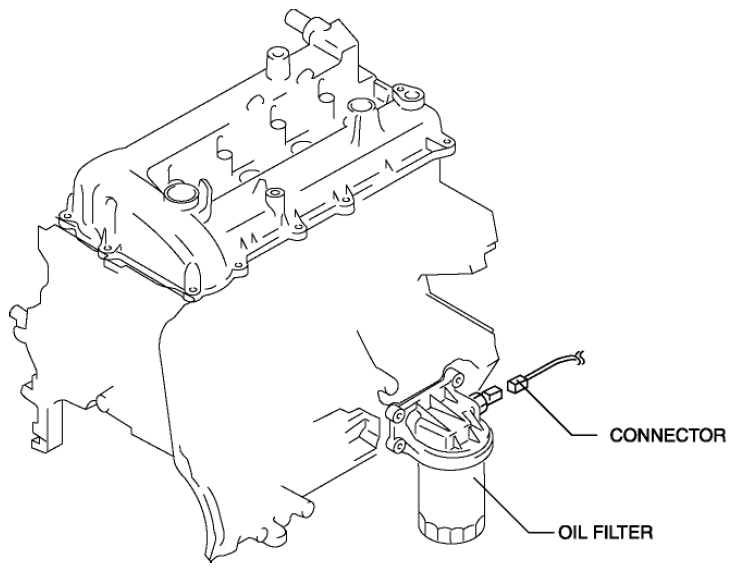

    Fig 1: Identifying Oil Pressure Switch And Connector
    G08153561
  4. Remove the oil pressure switch.

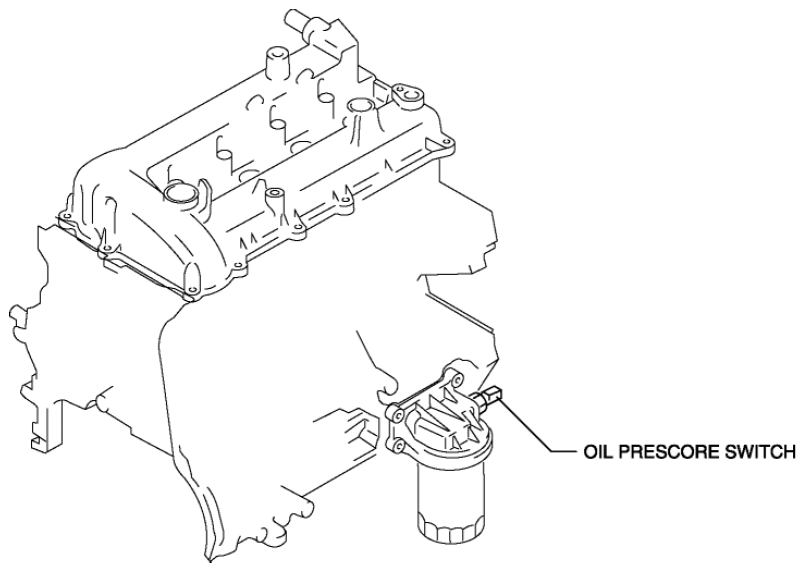

    Fig 2: Identifying Oil Pressure Switch
    G08153562
