ABS Wheel-Speed Sensor Connector End View

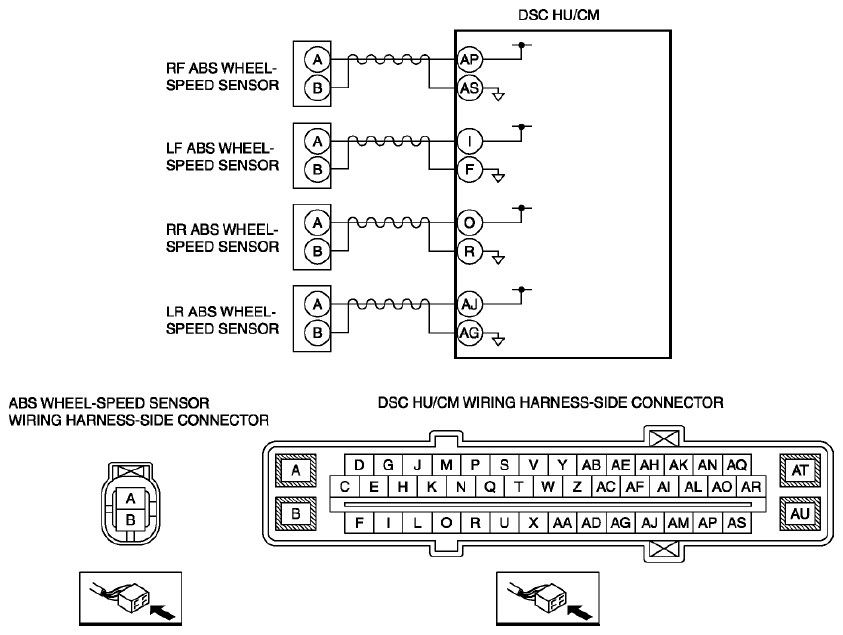

Fig 1: ABS Wheel-Speed Sensor Connector End View
G08150584Courtesy of MAZDA MOTORS CORP.
