Driver-Side Air Bag Module Connector End View
Driver-Side Air Bag Module Connector End View

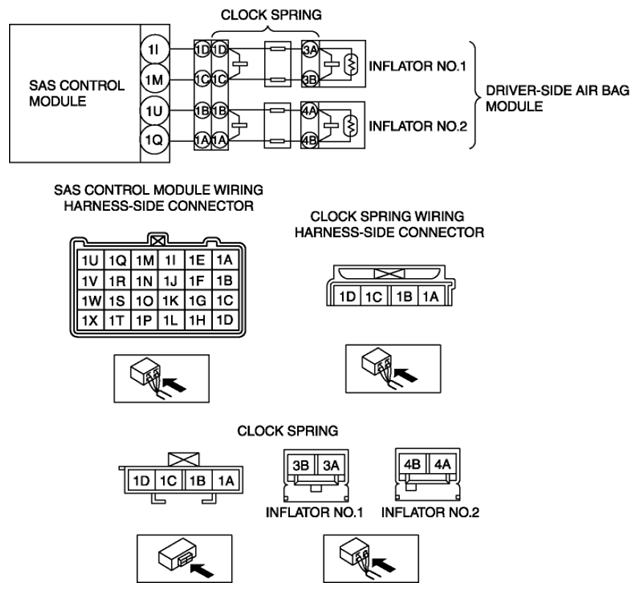

Fig 1: Driver-Side Air Bag Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
