Light Switch Connector End View
Light Switch Connector End View

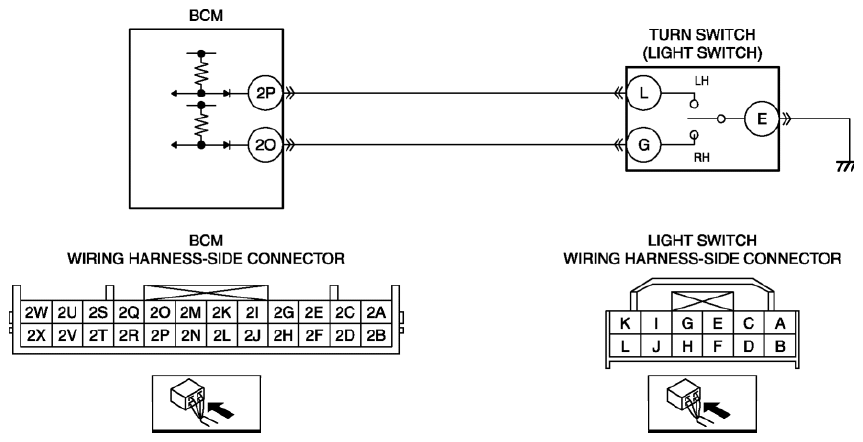

Fig 1: Light Switch Connector End View
Courtesy of MAZDA MOTORS CORP.

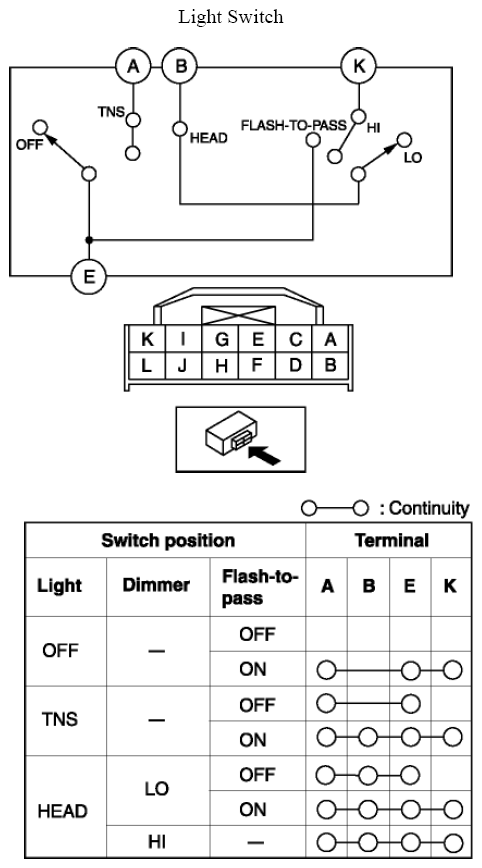

Fig 1: Light Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
