PCM Connector End View
PCM Connector End View

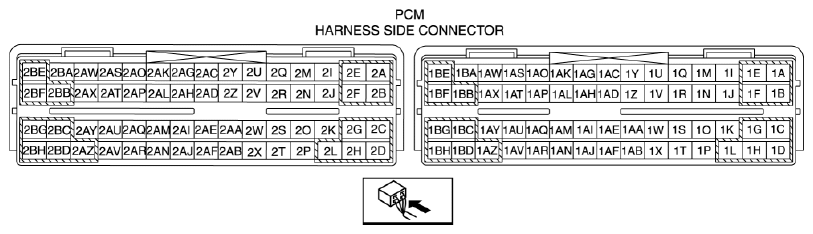

Fig 1: PCM Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
