Passenger-Side Air Bag Module Connector End View

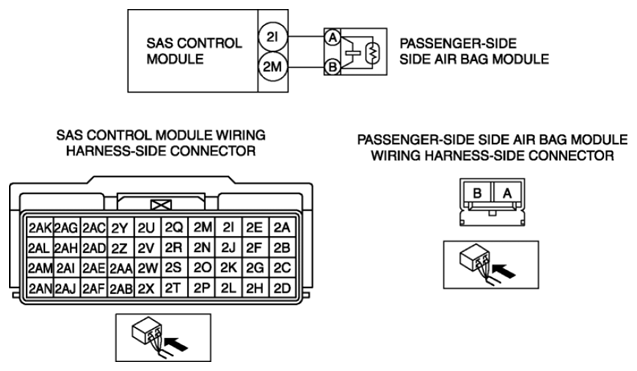

Fig 1: Passenger-Side Air Bag Module Connector End View
G08152393Courtesy of MAZDA MOTORS CORP.

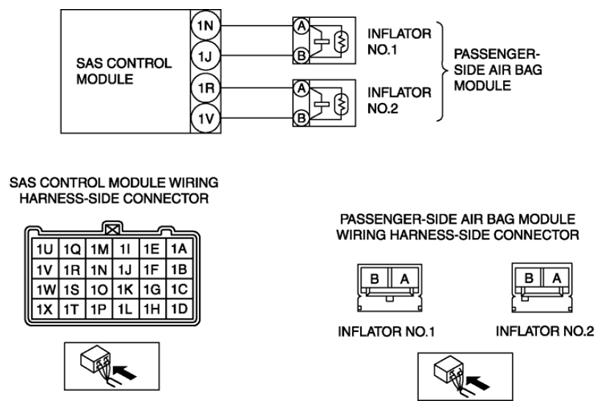

Fig 1: Passenger-Side Air Bag Module Connector End View
G08152397Courtesy of MAZDA MOTORS CORP.

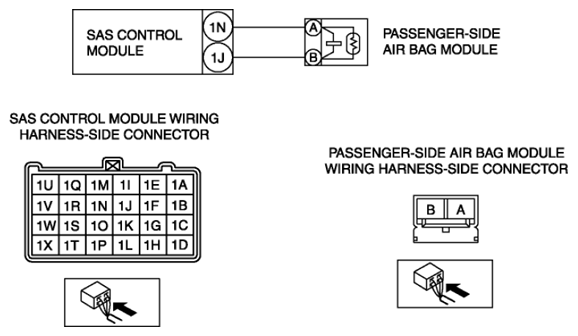

Fig 1: Passenger-Side Air Bag Module Connector End View
G08152307Courtesy of MAZDA MOTORS CORP.

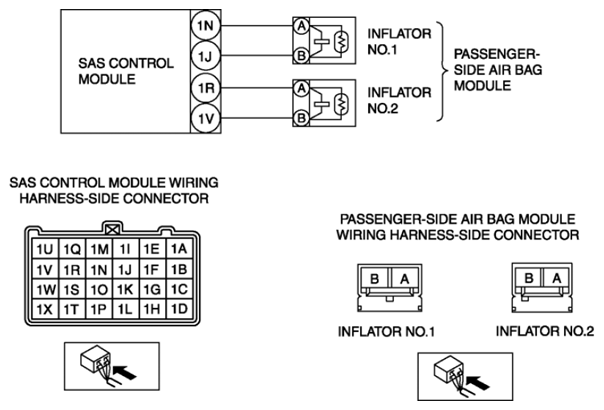

Fig 1: Passenger-Side Air Bag Module Connector End View
G08152387Courtesy of MAZDA MOTORS CORP.
