Passenger-Side Side Air Bag Module Connector End View

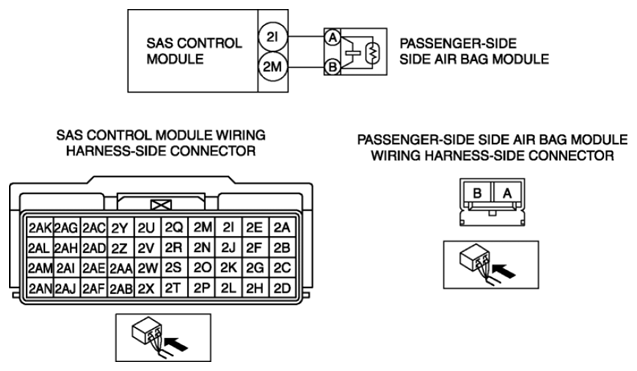

Fig 1: Passenger-Side Side Air Bag Module Connector End View
G08152313Courtesy of MAZDA MOTORS CORP.
