Rain Sensor Connector End View
Rain Sensor Connector End View

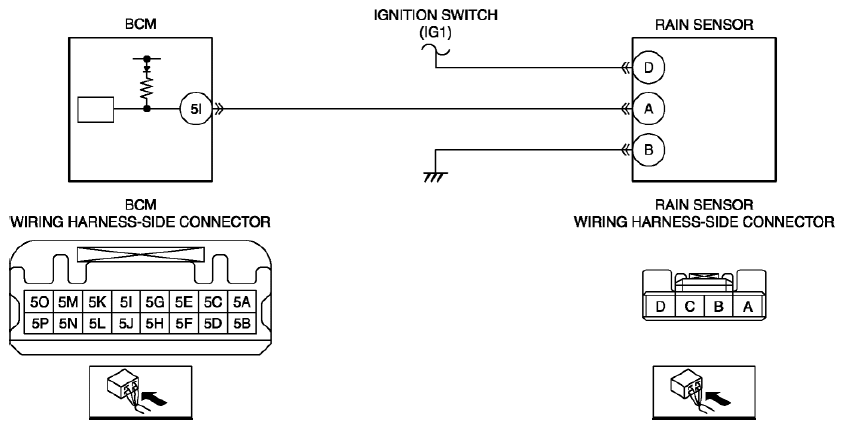

Fig 1: Rain Sensor Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
