Turn Switch Connector End View
Turn Switch Connector End View

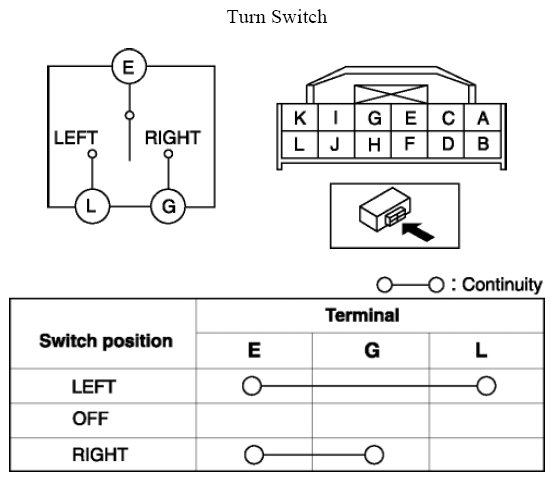

Fig 1: Turn Switch Connector End View
Courtesy of MAZDA MOTORS CORP.
