Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes

WARNING:

Removing/installing the shock absorber and coil spring is dangerous. The shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.

Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

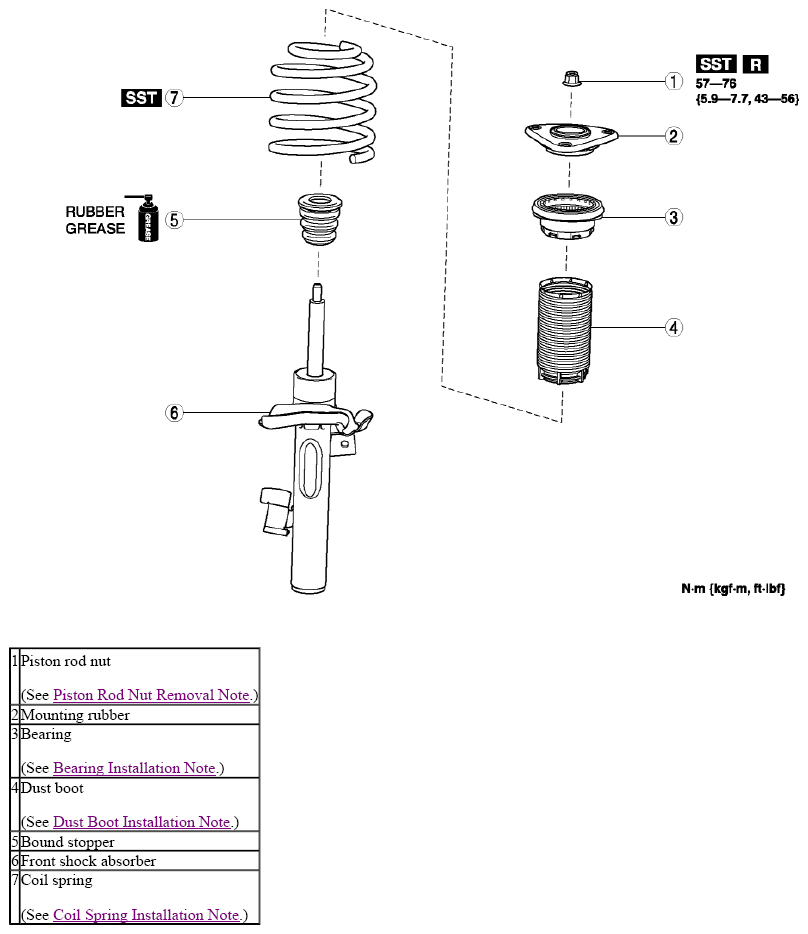

Fig 1: Exploded View Of Front Shock Absorber And Coil Spring With Torque Specification
