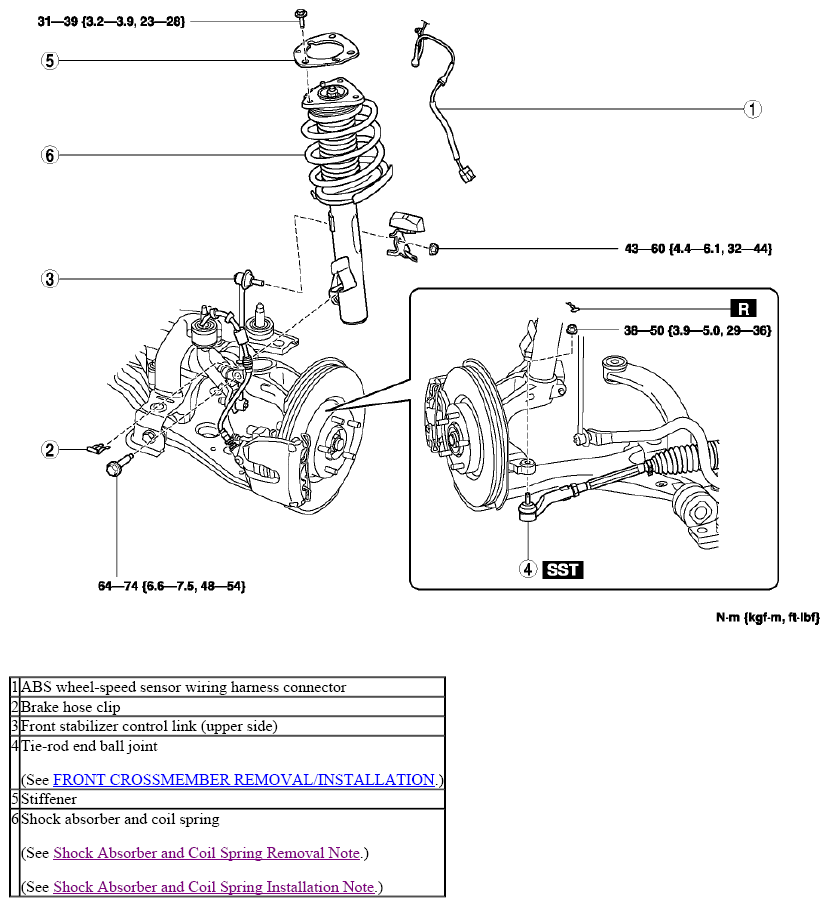

Front Shock Absorber And Coil Spring Removal/Installation: Notes
CAUTION:
- Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor wiring harness connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.
- Remove the No.1 brake fluid reserve tank installation nuts. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
- Set No.1 brake fluid reserve tank out of the way so that it does not interfere with the service performed with the hose connected.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect the wheel alignment. (See FRONT WHEEL ALIGNMENT .)
