Stabilizer Bushing Installation Note

Widen the stabilizer bushing opening 23-28 mm {1.0-1.1 in} and install the bushing to the front stabilizer as shown in the figure.

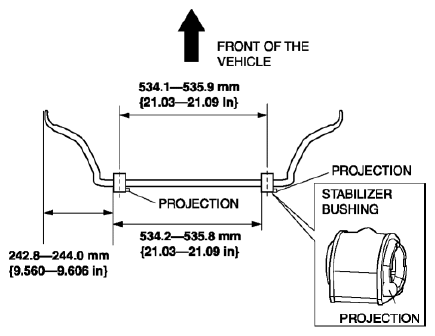

Fig 1: Identifying Front Stabilizer Bushing Height
Verify the installation direction of the stabilizer bushing.

Fig 2: Identifying Stabilizer Bushing Projection Dimension
