Forward Clutch Disassembly/Assembly: Notes

Perform the preinspection before disassembly. (See FORWARD CLUTCH PREINSPECTION .)
Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

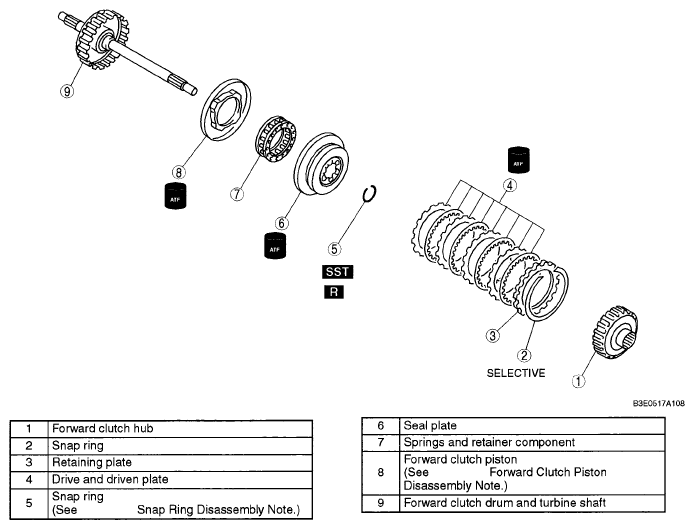

Fig 1: Identifying Forward Clutch Components
Courtesy of MAZDA MOTORS CORP.
