Clutch Pedal Position (CPP) Switch Inspection: Notes
- Verify that the CPP switch is installed properly.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect CPP switch connector. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)

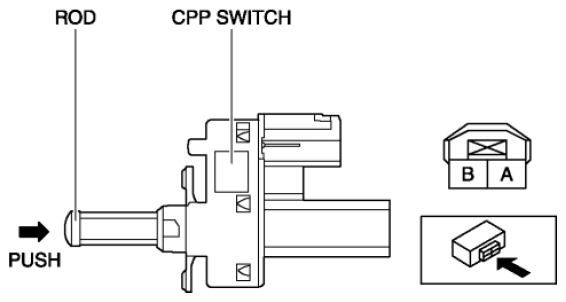

- Inspect for continuity between CPP switch terminals A and B.
- If not as specified, replace the CPP switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION .)
