Engine Control System [MZR 2.5]
›
Pcm Inspection
›
Inspection Using An Oscilloscope (Reference)
›
Fan control module signal
Fan control module signal

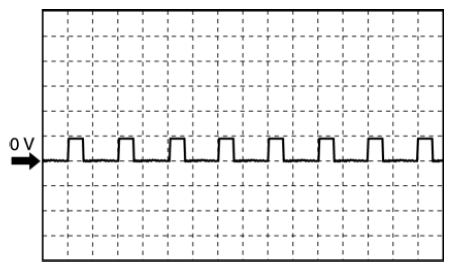

Fig 1: Fan Control Module Signal Waveform
PCM terminals
1R-body ground (-)
Oscilloscope setting
5 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition
Idle (after warm up)
