Accessory Socket Removal/Installation: Front

Disconnect the negative battery cable.
Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Shift knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

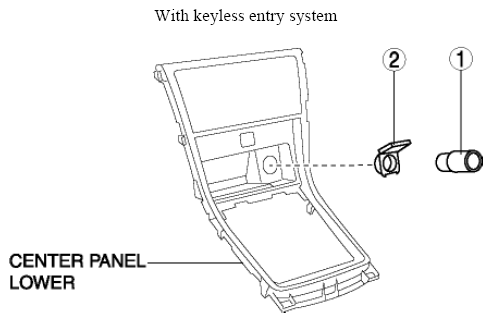

Fig 1: Identifying Center Lower Panel, Accessory Socket (Front) And Cap (With Keyless Entry System)

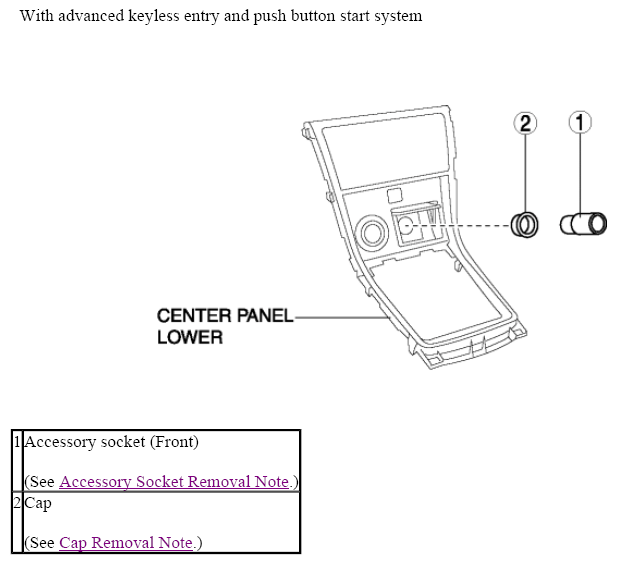

Fig 2: Identifying Center Lower Panel, Accessory Socket (Front) And Cap (With Advanced Keyless Entry And Push Button Start System)
Install in the reverse order of removal.
