| DESCRIPTION |

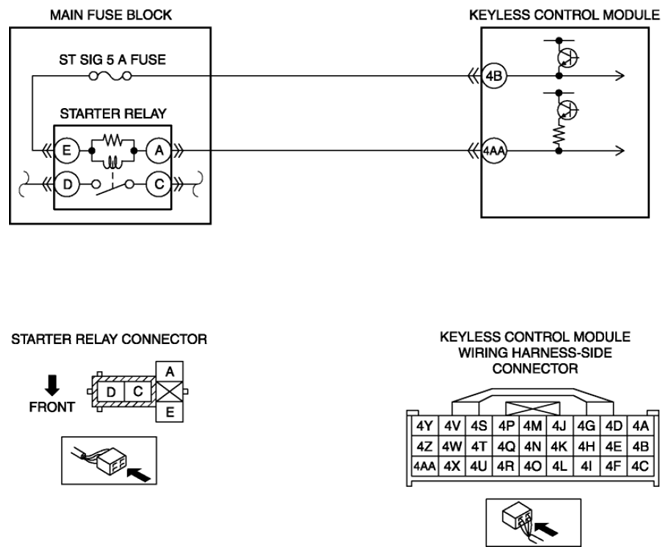

- Open circuit in starter circuit
|
| DETECTION CONDITION |
- Detect the mismatch voltage between starter relay and starter monitor.
- Feedback voltage of starter relay output circuit less than 4.3 V
and starter monitor input circuit higher than 4.3 V
is detected under the following conditions:
- IG1 relay output circuit is not active
- Clutch is depressed
|
| POSSIBLE CAUSE |
- Connector or terminal malfunction
- Open circuit in related wiring harness
- Keyless control module malfunction
|
|
|
