MZR 2.5

DETECTION CONDITION
  • CAN and inhibitor switch signals do not correspond, while ignition is ON (engine off).
    • Starter monitor input circuit voltage less than 4.3 V  under the following conditions:
      • IG1 relay output circuit is active
      • Shift lever is D range
      • Engine is not running
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Transaxle range switch malfunction
  • Open circuit in related wiring harness
  • Keyless control module malfunction

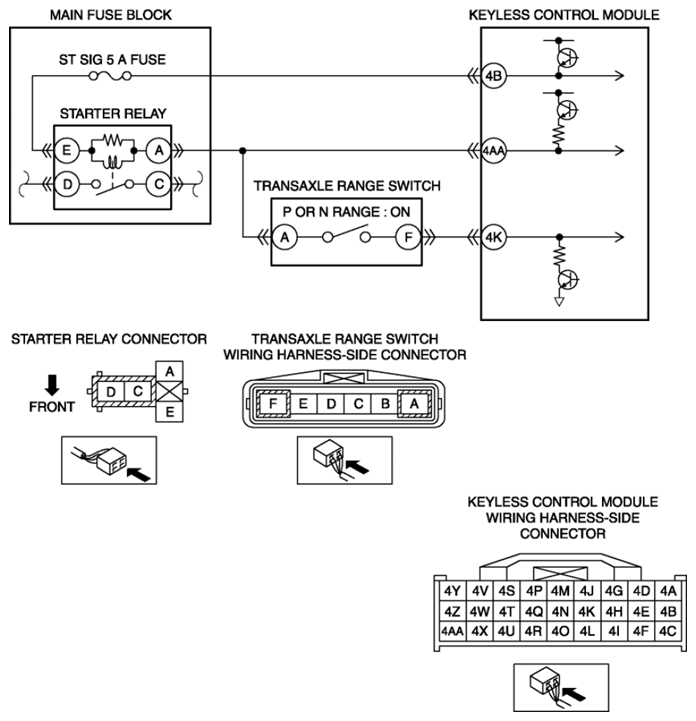

G08143946
