| DETECTION CONDITION |
P1794:16 |
Battery power supply circuit (+B2) voltage less than 9 V
is detected for 10 s |
| P1794:17 |
Battery power supply circuit (+B2) voltage higher than 16 V
is detected for 0.5 s,
while engine is running |
| POSSIBLE CAUSE |
- ENG+B 10 A fuse malfunction
- Battery malfunction
- Generator malfunction
- Connector or terminal malfunction

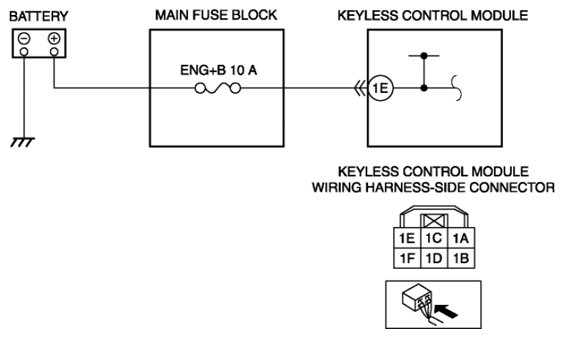

- Short to ground in wiring harness between battery positive terminal and keyless control module terminal 1E
- Open circuit in wiring harness between battery positive terminal and keyless control module terminal 1E
- Keyless control module malfunction
|
|
|
