Vehicle Exterior, Rear

  1. Disconnect the negative battery cable.
  2. Remove the nuts.

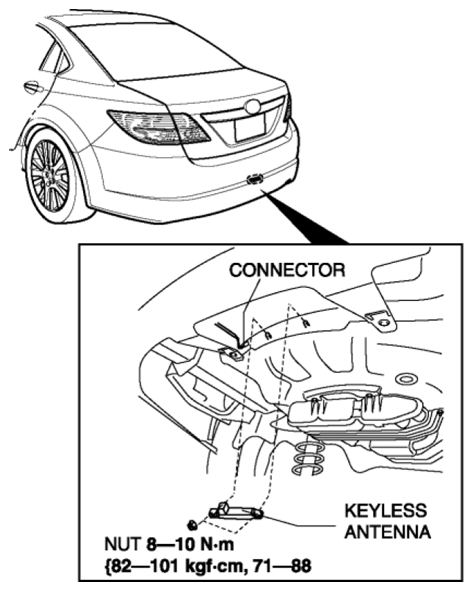

    Fig 1: Identifying Nuts, Keyless Antenna And Connector
    G08144613
  3. Disconnect the connector.
  4. Remove the keyless antenna.
  5. Install in the reverse order of removal.
