Front Seat Removal/Installation: Driver-Side

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait 1 min or more  .
  3. Pull the adjuster cover No.1 in the direction of arrow and remove the clips.

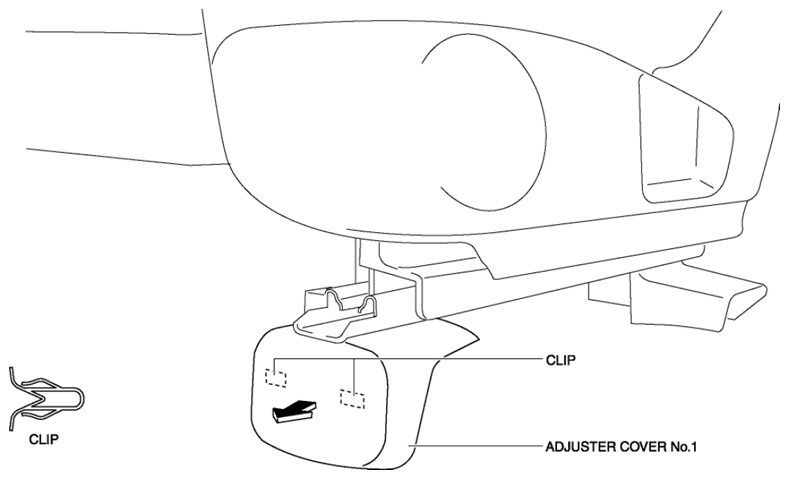

    Fig 1: Identifying Adjuster Cover No.1 And Clips
    G08144398
  4. Remove the adjuster cover No.1.
  5. Pull the adjuster cover No.2 in the direction of arrow and remove the clip.

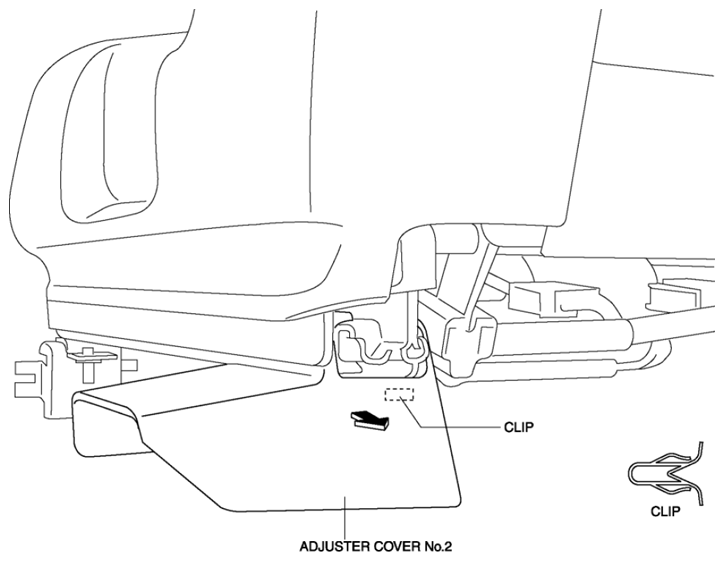

    Fig 2: Identifying Adjuster Cover No.2 And Clip
    G08144399
  6. Pull the adjuster cover No.2 in the direction of arrow (1) shown in the figure to release the tabs, then raise the adjuster cover No.2 in the direction of arrow (2).

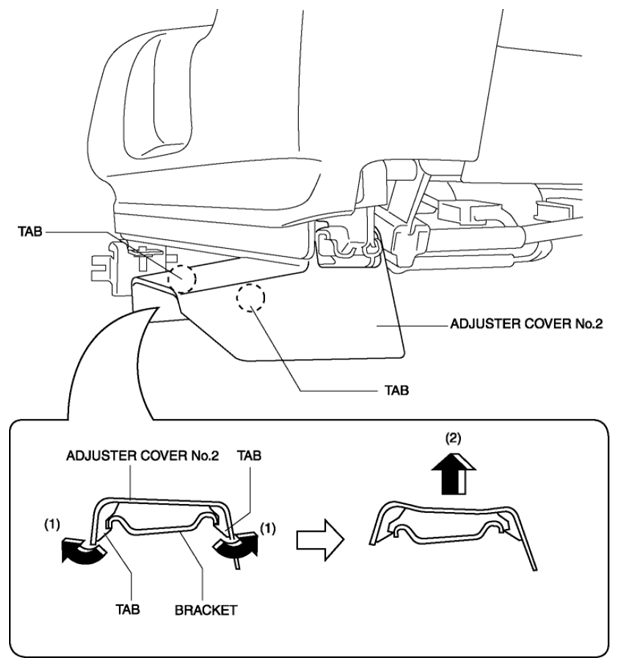

    Fig 3: Identifying Adjuster Cover No.2 And Tabs
    G08144400
  7. Remove the adjuster cover No.2.
  8. Pull the adjuster cover No.3 in the direction of arrow and remove the clip.

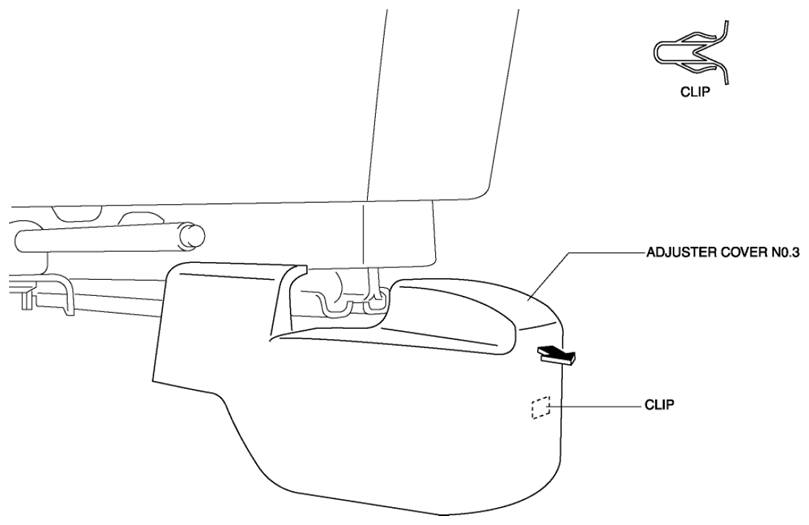

    Fig 4: Identifying Adjuster Cover No.3 Pulling Direction And Clip
    G08144401
  9. Remove the adjuster cover No.3.
  10. Disconnect the connector.

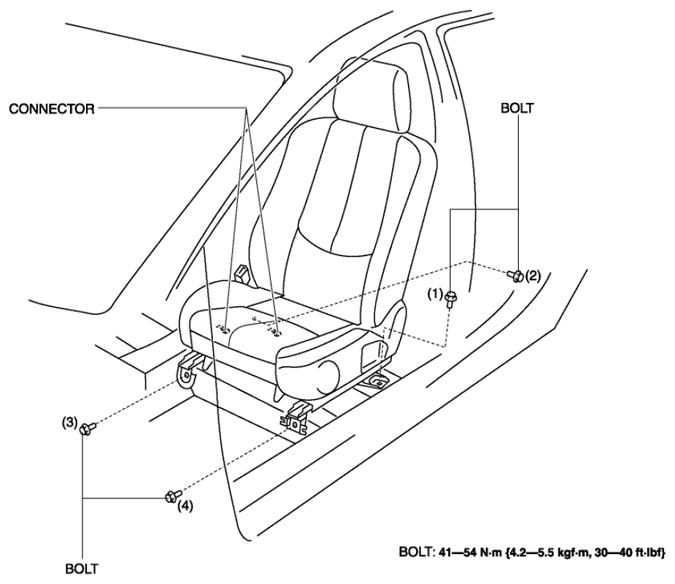

    Fig 5: Identifying Front Seat Bolts Removal Order
    G08144402
  11. Remove the bolts in the order of arrow (1), (2), (3), (4) shown in the figure, then remove the front seat.
  12. Install in the reverse order of removal.
