Info Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front scuff plate (Driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (Driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    4. Decoration panel (Driver side) (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    6. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    7. Lower panel (Driver side) (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the INFO switch.

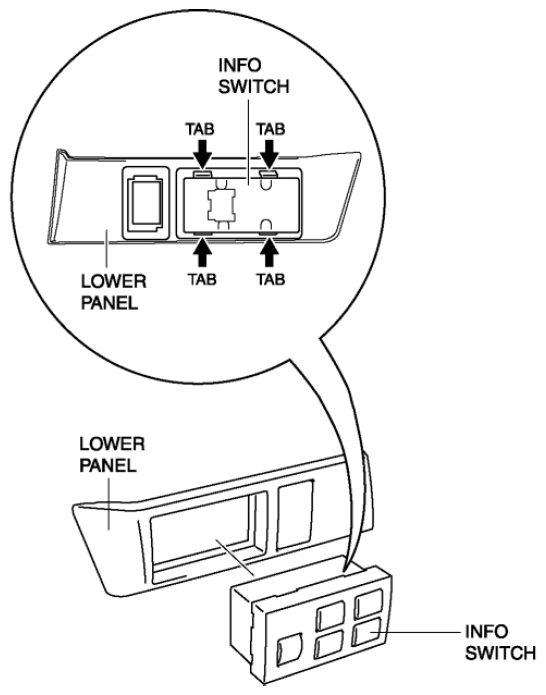

    Fig 1: Identifying INFO Switch, Lower Panel And Tabs
    G08145073
  4. Install in the reverse order of removal.
