Instrument Cluster Disassembly/Assembly
CAUTION:
- Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
- Perform the instrument cluster configuration when replacing it. (See INSTRUMENT CLUSTER CONFIGURATION .)
- Disconnect the negative battery cable.
- Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION .)
- Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)

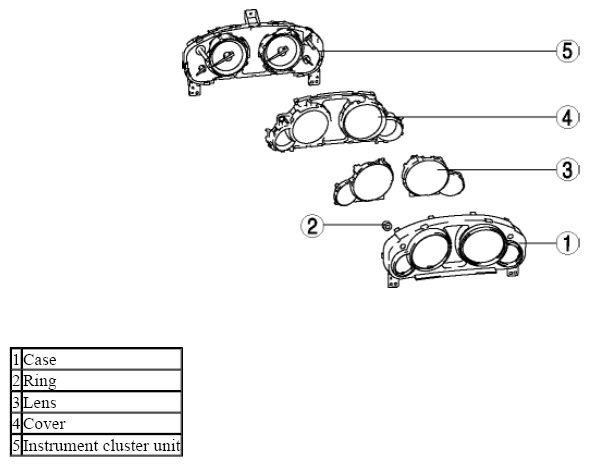

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
