Blind Spot Monitoring (BSM) System

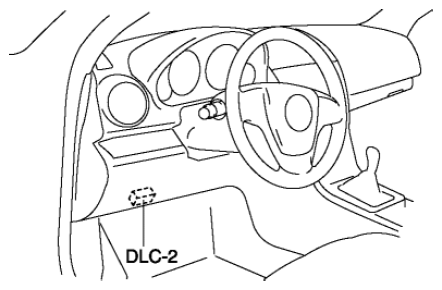

- Connect the M-MDS (IDS) to the DLC-2.
- After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select the "Module Programming".
- Then, select items from the screen menu in the following order.
- Select "Programmable Parameters".
- Select "Personality".
- Select an item name, and then select option.
M-MDS Display Function Initial Setting Setting Content Control Unit BSM buzzer The BSM warning alarm sound can be set to operable or inoperable. Enabled Disabled / Enabled BSM control module
