Instrument Cluster

Connect the M-MDS (IDS) to the DLC-2.

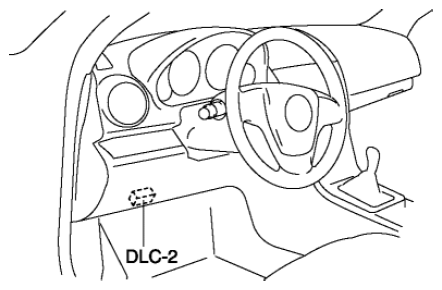

Fig 1: Identifying DLC-2
After the vehicle is identified, select the following items from the initialization screen of the IDS.
- Select the "Module Programming".
Then, select items from the screen menu in the following order.
1. Select "Programmable Parameters".
2. Select "Warning Lamps / Chimes".

Select an item name, and then select option.

M-MDS Display	Function	Initial Setting	Setting Content	Control Unit
Welcome Mode	The welcome mode can be set to operable or inoperable.	Enabled	Disabled / Enabled	Instrument cluster
Outside Air Temperature	The ambient temperature display unit can be changed.	Fahrenheit	Celsius / Fahrenheit	Instrument cluster
Decoration Illumination	The instrument cluster illumination can be set to operable or inoperable.	Disabled	Disabled / Enabled	Instrument cluster
Headlamp reminder buzzer	The headlights-on reminder warning alarm can be set to operable or inoperable.	Disabled	Disabled / Enabled	Instrument cluster
Turn signal buzzer volume	The turn indicator beeper sound volume can be adjusted.	Normal	Normal / Small	Instrument cluster

CAUTION:

The M-MDS screen displays the following items, however, do not change the setting. If the setting is changed, a difference occurs between the instrument cluster indication and actual fuel level leading to unexpected fuel shortage.

M-MDS Display	Function	Initial Setting	Setting Content	Control Unit
Fuel Response Data	The response timing of the remaining distance to empty corresponding to the remaining fuel can be selected.	Level 6	Level 1-16	Instrument cluster
