Control System Location Index

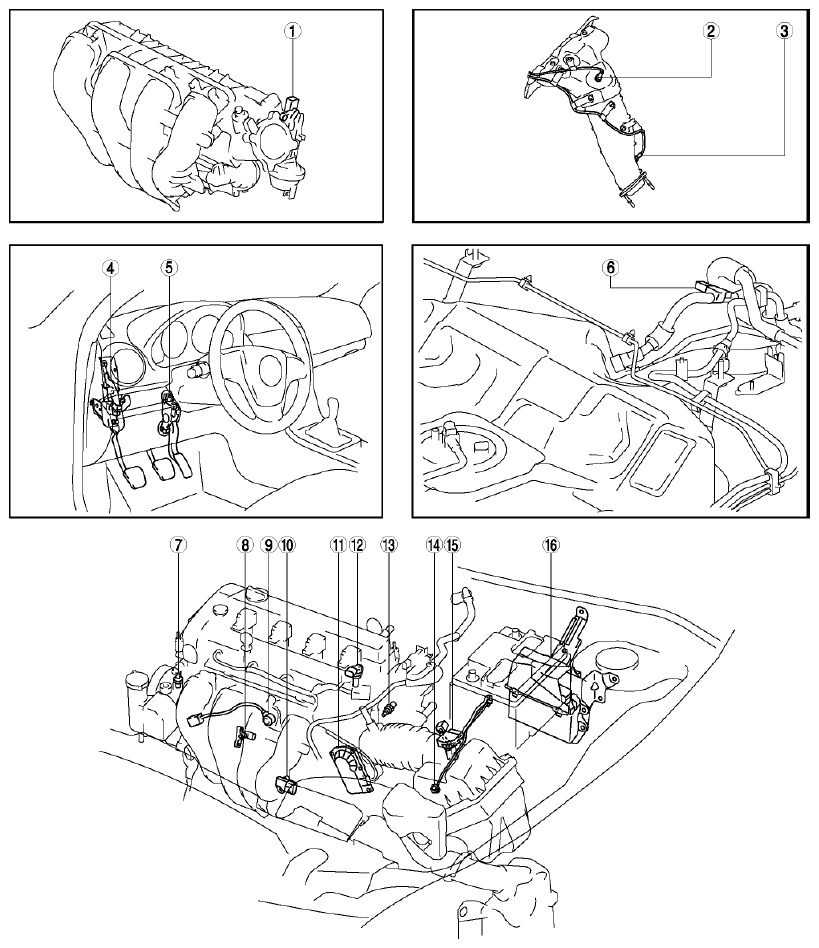

Fig 1: Identifying Control System Components - MZR 2.5 (1 Of 2)

G08140753

Fig 2: Identifying Control System Components - MZR 2.5 (2 Of 2)

G08140754
