Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System [MZR 2.5]
›
Control System Wiring Diagram
Control System Wiring Diagram

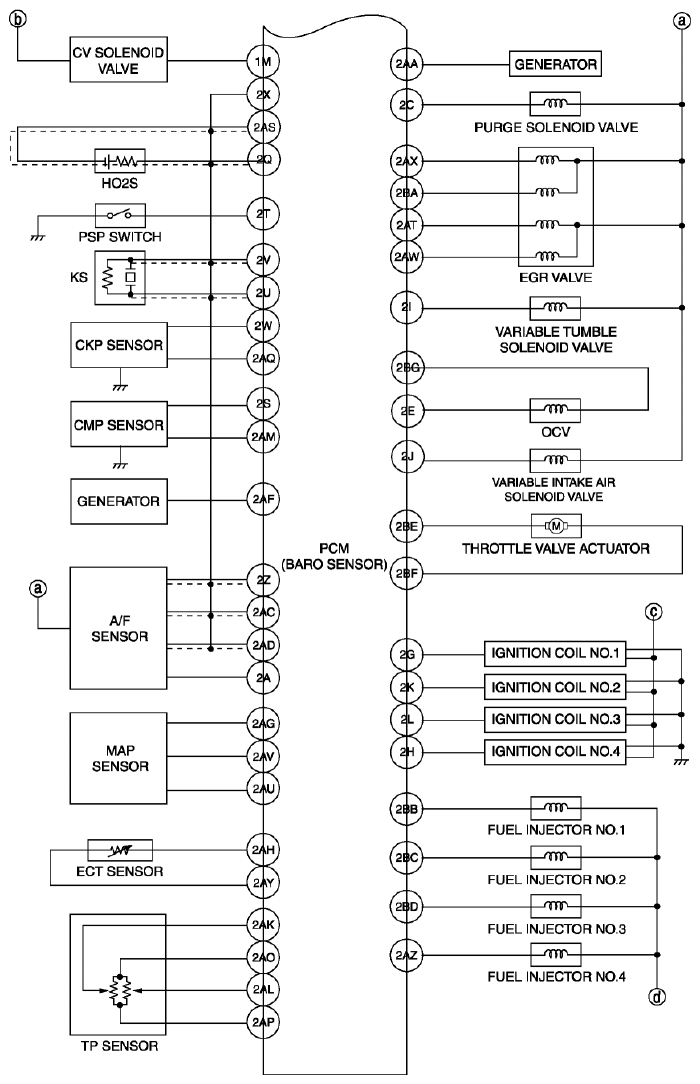

Fig 1: Control System Wiring Diagram - MZR 2.5 (1 Of 2)

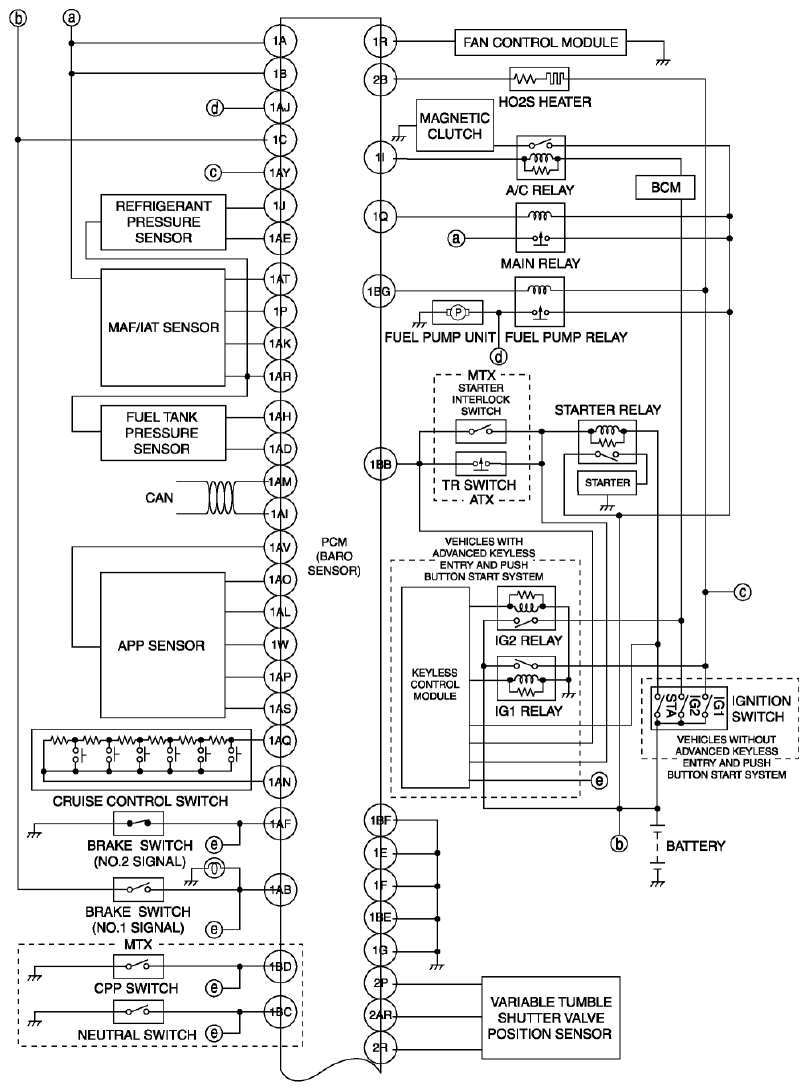

Fig 2: Control System Wiring Diagram - MZR 2.5 (2 Of 2)
