CMP sensor signal

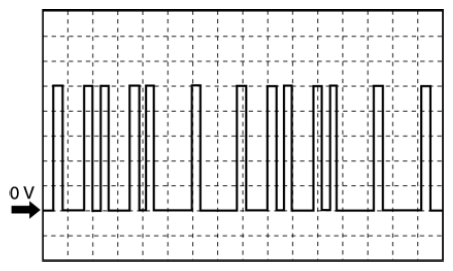

Fig 1: CMP Sensor Signal Waveform

G08140766

PCM terminals

2S(+)-body ground(-)

Oscilloscope setting

1 V/DIV (Y), 25 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
