Generator field coil control signal

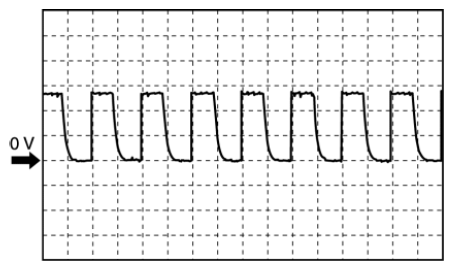

Fig 1: Generator Field Coil Control Signal Waveform

PCM terminals

• 2AA(+)-body ground(-)

Oscilloscope setting

• 0.5 V/DIV (Y), 2 ms/DIV (X), DC range

Vehicle condition

• Idle (after warm up)
