OCV control signal

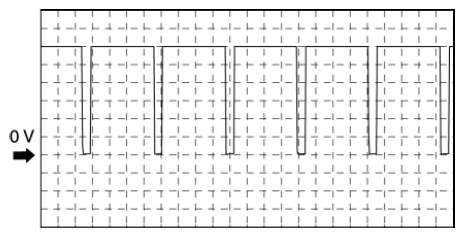

Fig 1: OCV Control Signal Waveform

G08140765

PCM terminals

2E(+)-body ground(-)

Oscilloscope setting

2 V/DIV (Y), 0.8 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
