Monitoring System And Control System Device Relationship Chart

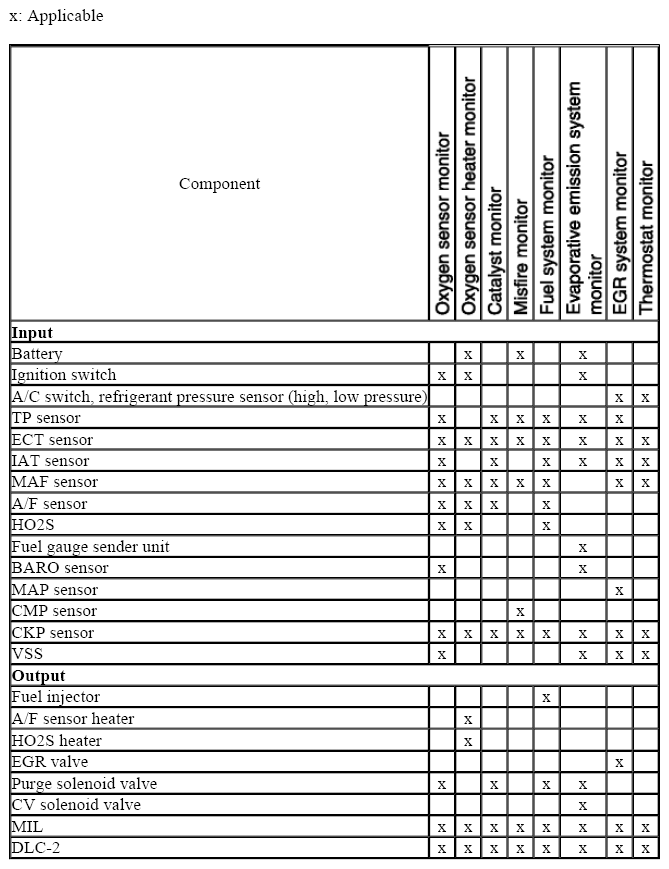

Fig 1: Monitoring System And Control System Device Relationship Chart - MZR 2.5
