Receiver/Drier Removal/Installation: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Drain the refrigerant. See. REFRIGERANT CHARGING .
- Remove the front bumper. See.
FRONT BUMPER REMOVAL/INSTALLATION
.CAUTION:
- If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

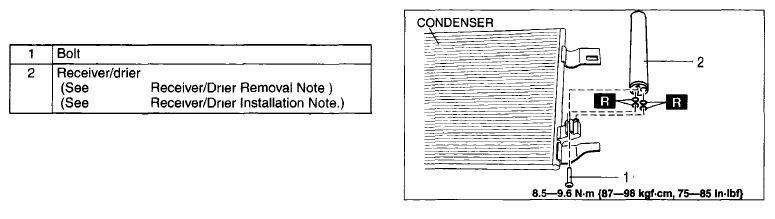

- Remove in the order indicated in the table. Do not allow compressor oil to spill.
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. See. REFRIGERANT SYSTEM PERFORMANCE TEST .
