Keyless Control Module Inspection [Advanced Keyless Entry And Push Button Start System]
›
Generated Pulse (reference)
›
Pattern 1
Pattern 1

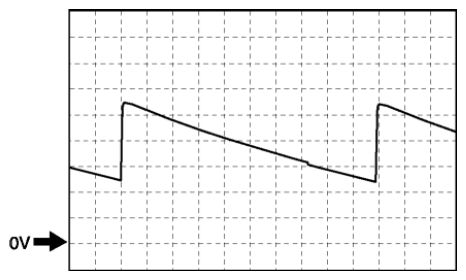

Fig 1: Generated Pulse (Reference) - Pattern 1
Terminal: 3E (+) ↔ body ground (-)
Terminal: 3M (+) ↔ body ground (-)
Terminal: 3T (+) ↔ body ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
