Clock Spring And SAS Control Module Connector End View
Clock Spring And SAS Control Module Connector End View

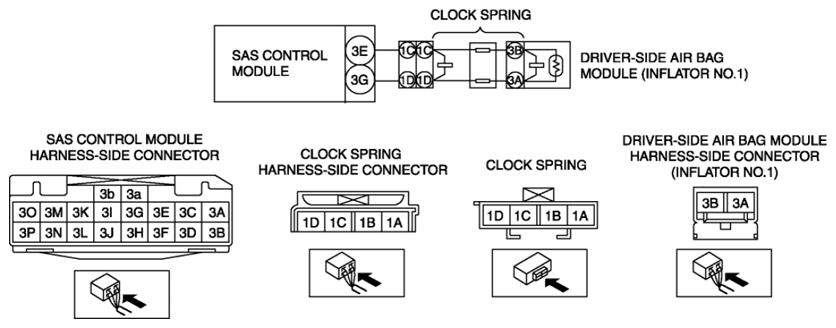

Fig 1: Clock Spring And SAS Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
