M-MDS Connecting Procedure

NOTE:
  • Do not place the M-MDS in the vehicle while programming the immobilizer system.
  1. Fully lower the door glass.
  2. Connect the M-MDS (IDS) to the DLC-2.

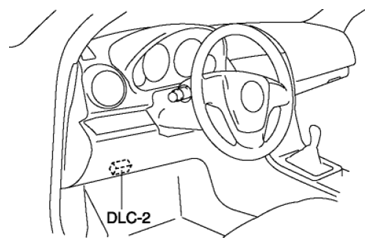

    Fig 1: Identifying DLC-2 Location
    G08144591
  3. Place the M-MDS (IDS) outside the vehicle.
    CAUTION:
    • Cover the vehicle body with a clean rag so as not to damage the vehicle body with the cable.
