CKP sensor signal

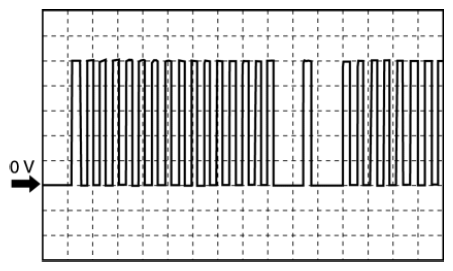

Fig 1: CKP Sensor Signal Waveform

G08140767

PCM terminals

2W(+)-body ground(-)

Oscilloscope setting

1 V/DIV (Y), 5 ms/DIV (X), DC range

Vehicle condition

Idle (after warm up)
