DTC P081C:62 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION  CAN and P range switch signals do not correspond, while ignition switch is ON
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Short to ground in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
  • Short to power supply in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
  • Selector lever component malfunction
  • Open circuit in the wiring harness between selector lever component terminal G and keyless control module terminal 3M
  • Keyless control module malfunction

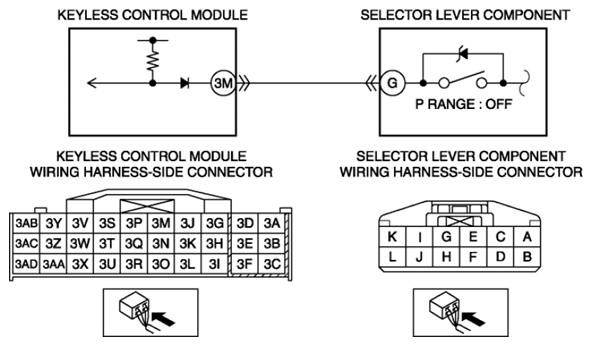

G08143943
