DTC P081D:62 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION
  • Neutral switch is detected as continuously ON in spite of vehicle speed increasing from 0 km/h {0 mph}  to 10 km/h {6.2 mph}
  • CAN and neutral switch signals do not correspond
POSSIBLE CAUSE
  • Connector or terminal malfunction
  • Open circuit in the wiring harness between neutral switch terminal A and body ground
  • Short to ground in the wiring harness between neutral switch terminal B and keyless control module terminal 3T
  • Neutral switch malfunction
  • Open circuit in the wiring harness between neutral switch terminal B and keyless control module terminal 3T
  • Keyless control module malfunction

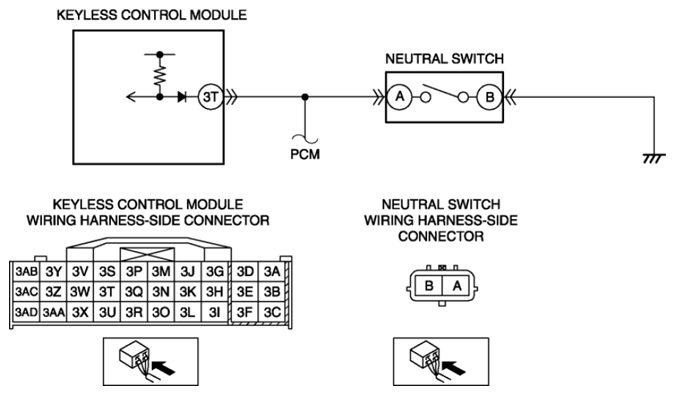

G08143944
