DTC P0830:23 [Advanced Keyless Entry And Push Button Start System]: Notes

DETECTION CONDITION	Clutch pedal position (CPP) switch signal is detected for 600 s

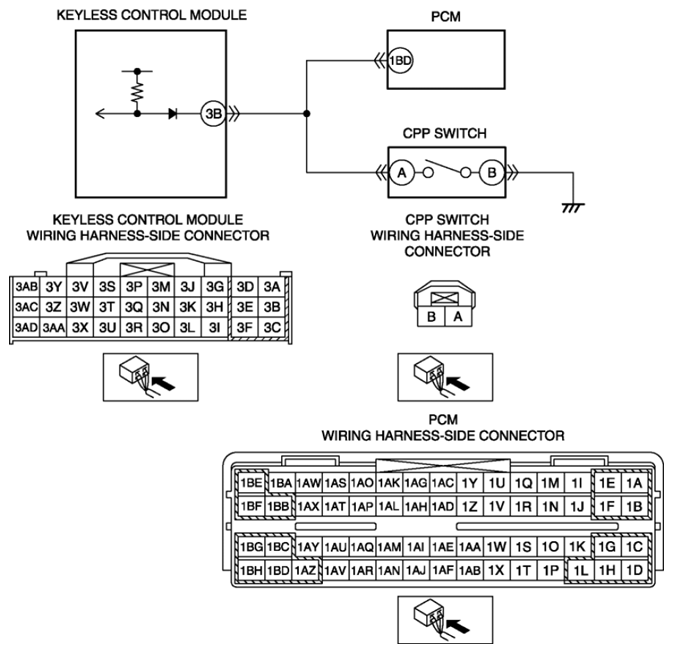

POSSIBLE CAUSE	Connector or terminal malfunction Short to ground in the wiring harness between clutch pedal position (CPP) switch terminal A and keyless control module terminal 3B Short to ground in the wiring harness between PCM terminal 1BD and keyless control module terminal 3B Clutch pedal position (CPP) switch malfunction PCM malfunction Keyless control module malfunction
