On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry And Push Button Start System]
On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

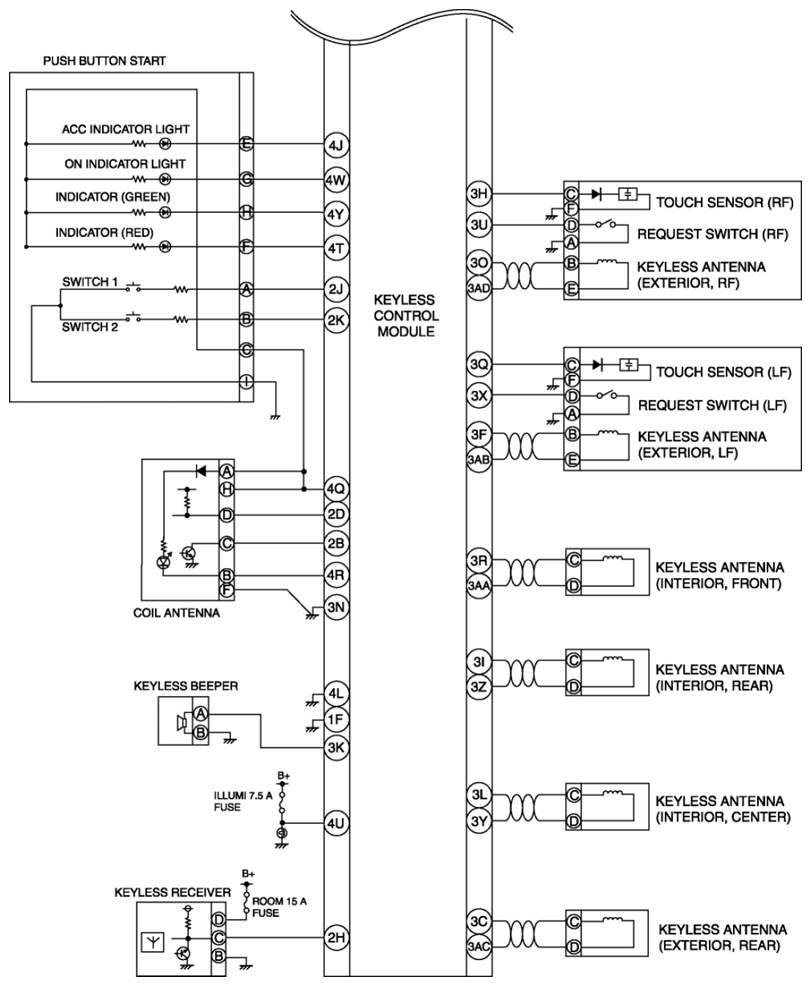

Fig 1: On-Board Diagnostic Wiring Diagram - Advanced Keyless Entry And Push Button Start System (1 Of 2)

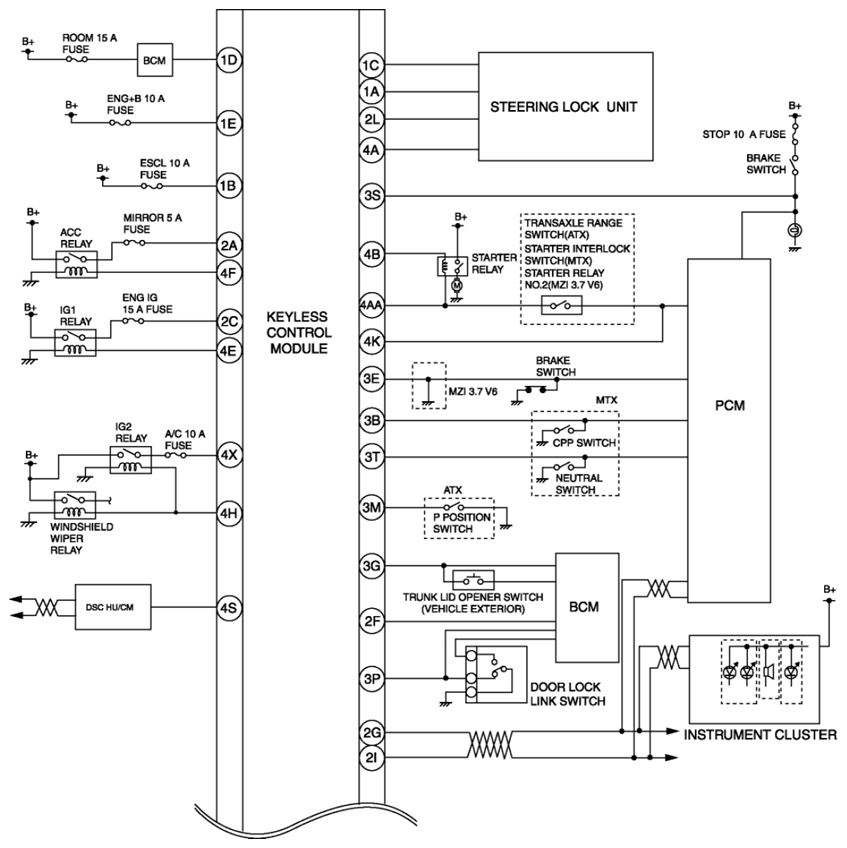

Fig 2: On-Board Diagnostic Wiring Diagram - Advanced Keyless Entry And Push Button Start System (2 Of 2)
