Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Push Button Start System]

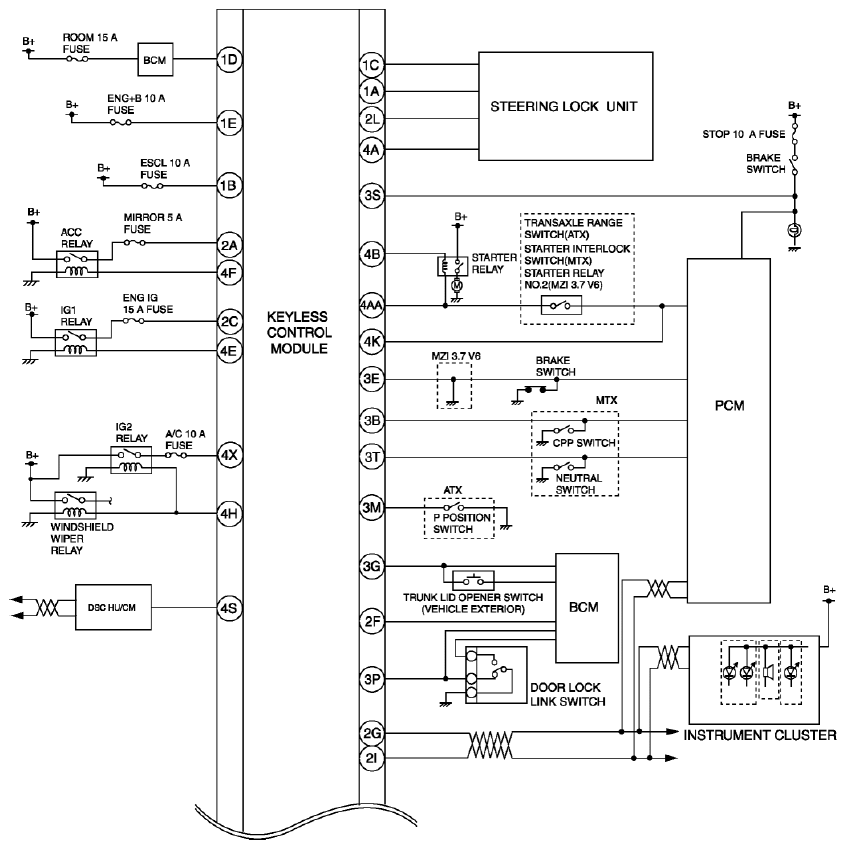

Fig 1: Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Push Button Start System] (1 Of 2)

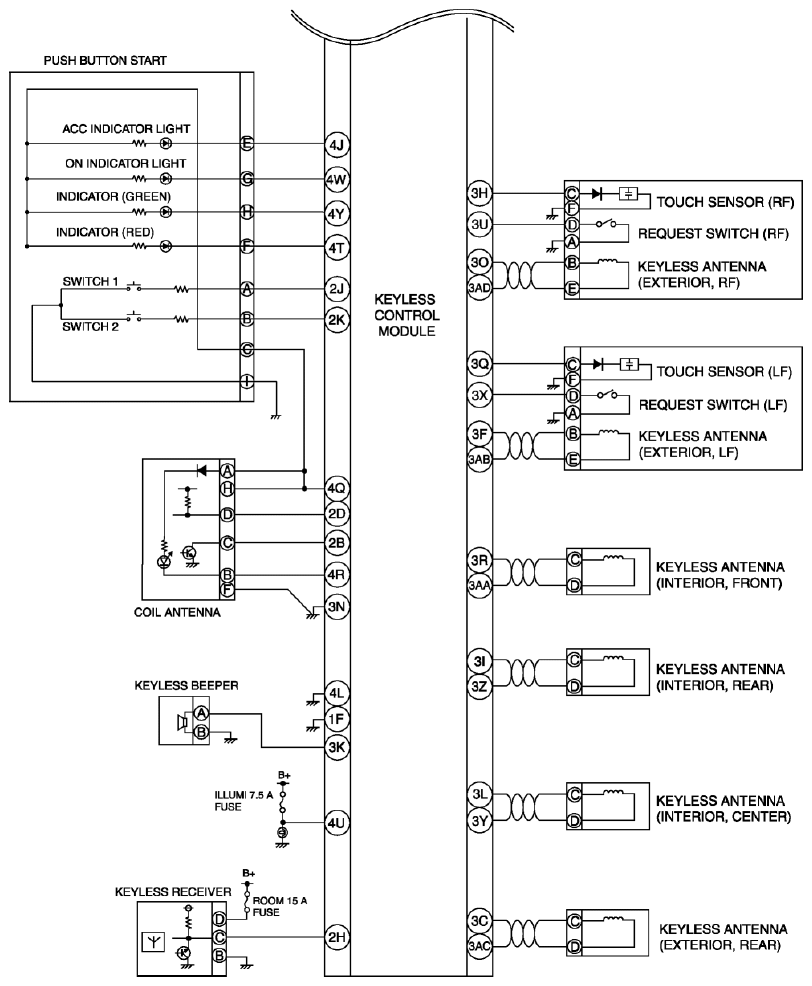

Fig 2: Keyless Entry System Wiring Diagram [Advanced Keyless Entry And Push Button Start System] (2 Of 2)
