Symptom Troubleshooting [Keyless Entry System]
›
Keyless Entry System Operation Inspection [Keyless Entry System]
Keyless Entry System Operation Inspection [Keyless Entry System]

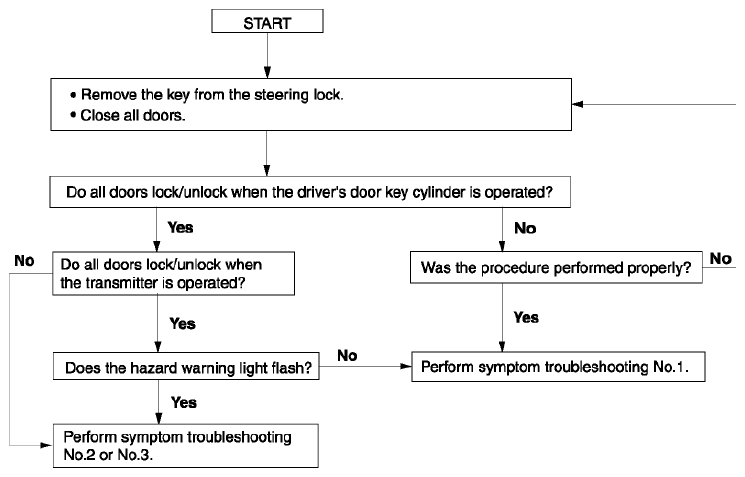

Fig 1: Keyless Entry System Operation Inspection Flowchart [Keyless Entry System]
