Shift Panel Removal/Installation

  1. Remove the shift knob. (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION )
  2. Pull the shift panel in the direction of the arrow shown in the figure and remove it while detaching the hooks.

    ATX

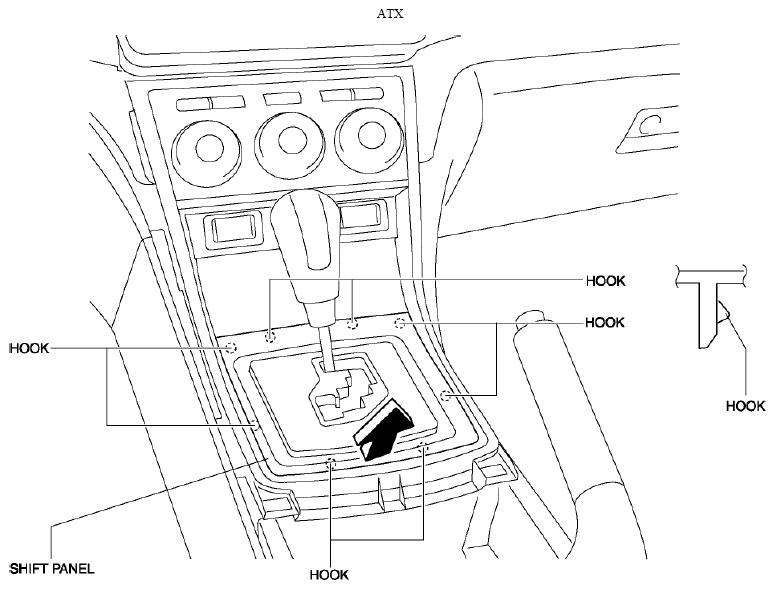

    Fig 1: Pulling Shift Panel Of Hooks (ATX)
    G08144724

    MTX

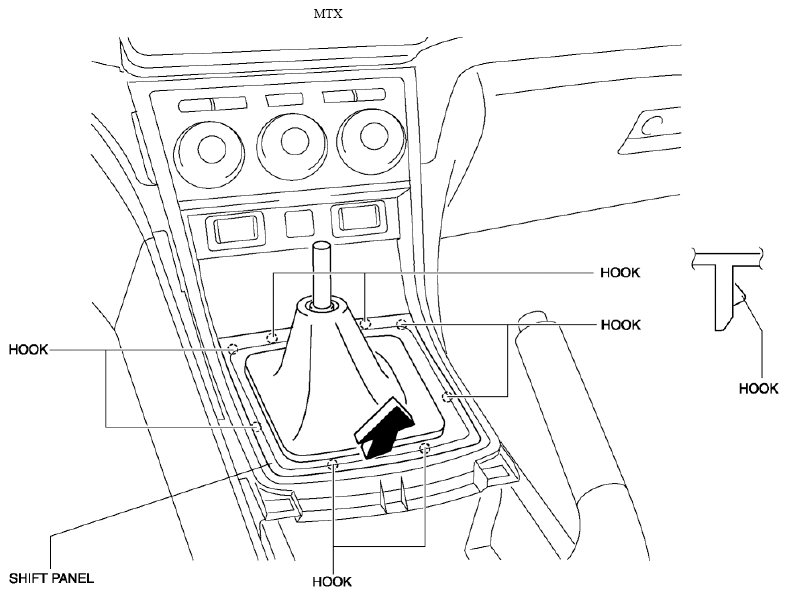

    Fig 2: Pulling Shift Panel Of Hooks (MTX)
    G08144725
  3. Remove the shift panel.
  4. Install in the reverse order of removal.
