Position Memory Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat side cover. (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .)
  3. Remove the screws, then remove the position memory switch.

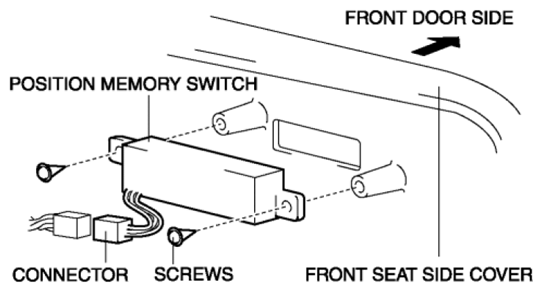

    Fig 1: Identifying Screws, Position Memory Switch And Connector
    G08144457
  4. Disconnect the position memory switch connector.
  5. Install in the reverse order of removal.
