Slide Motor Inspection
- Disconnect the slide motor connector.
- Apply battery positive voltage to the slide motor terminals and inspect the slide motor operation.
- If not as specified, replace the front seat slide adjuster. (See FRONT SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION .)

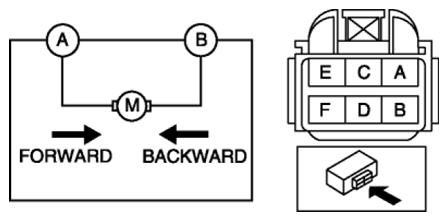

Motor operation Connection B+ GND Forward A B Backward B A
