Mirror Glass Adjustment Motor
- Disconnect the negative battery cable.
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Disconnect the power outer mirror connector.

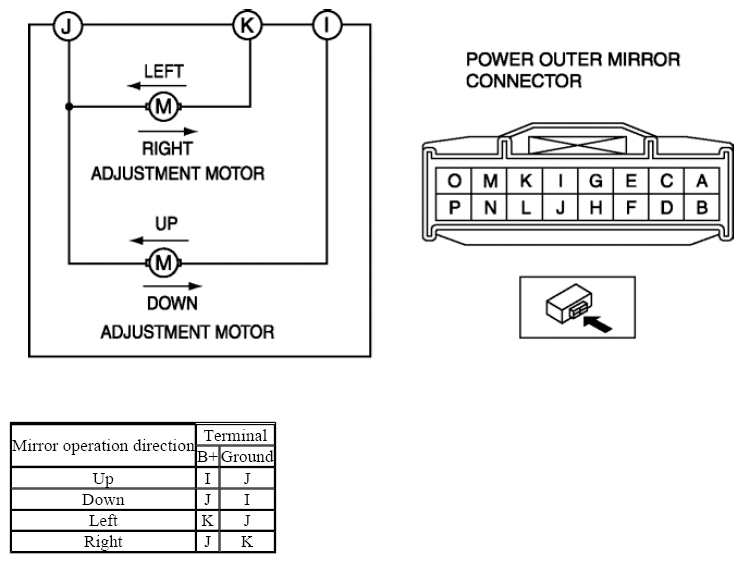

- Apply battery positive voltage and connect the ground to the power outer mirror connector terminals and inspect the power outer mirror operation.
Mirror operation direction Terminal B+ Ground Up I J Down J I Left K J Right J K - If the power outer mirror does not operate as indicated in the table, replace it. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
