Rear Door Quarter Glass Removal/Installation

  1. To access the glass installation bolt, position the rear door glass so that the distance from the top of the rear door glass to the upper part of the rear beltline molding is approx. 144 mm {5.67 in}  .
    Fig 1: Identifying Distance From Top Of Rear Door Glass To Upper Part Of Rear Beltline Molding
    G08144324
  2. Disconnect the negative battery cable.
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the screw.

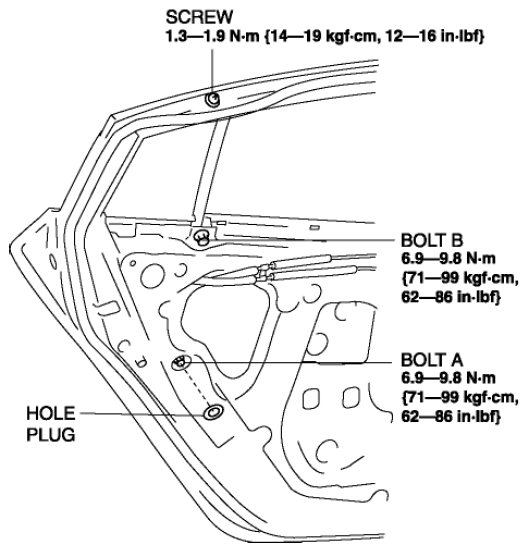

    Fig 2: Identifying Hole Plug, Screw And Bolts
    G08144325
  5. Remove the hole plug.
  6. Remove the bolt A.
  7. Remove the bolt B.
  8. Remove the rear door quarter glass guide.
  9. Slide the rear door quarter glass in the direction of the arrow (1) shown in the figure.

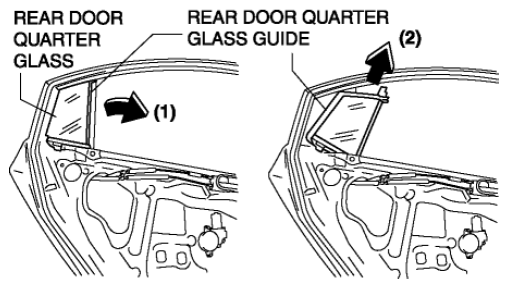

    Fig 3: Identifying Rear Door Quarter Glass Slide Direction
    G08144326
  10. Remove the rear door quarter glass and weatherstrip as a single unit in the direction of the arrow (2) shown in the figure.
  11. Remove the rear door quarter glass from the weatherstrip.

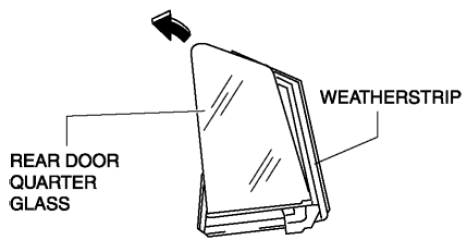

    Fig 4: Identifying Rear Door Quarter Glass And Weatherstrip Removal Direction
    G08144327
  12. Install in the reverse order of removal.
